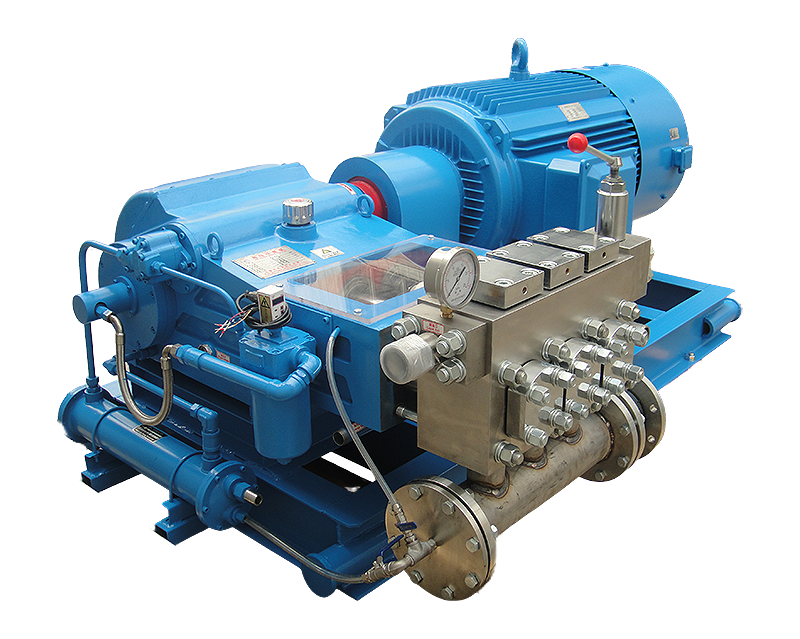

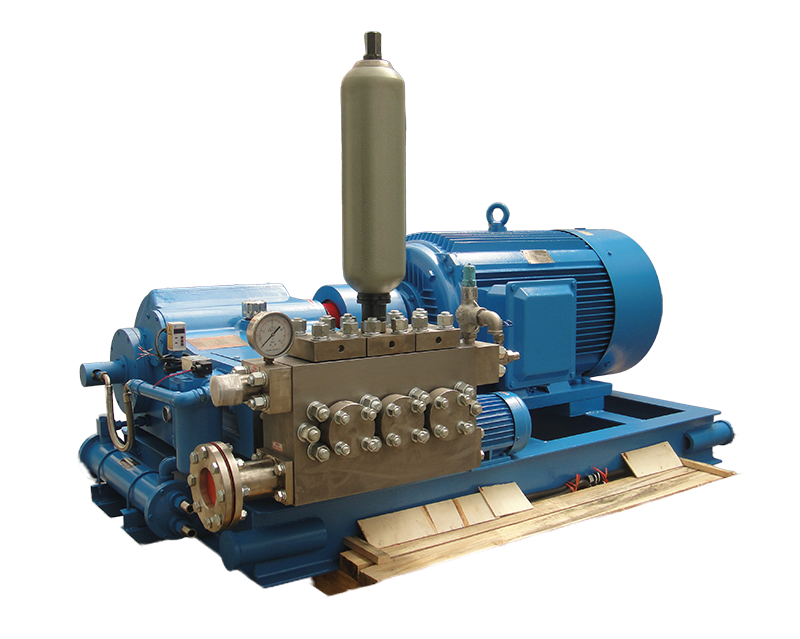

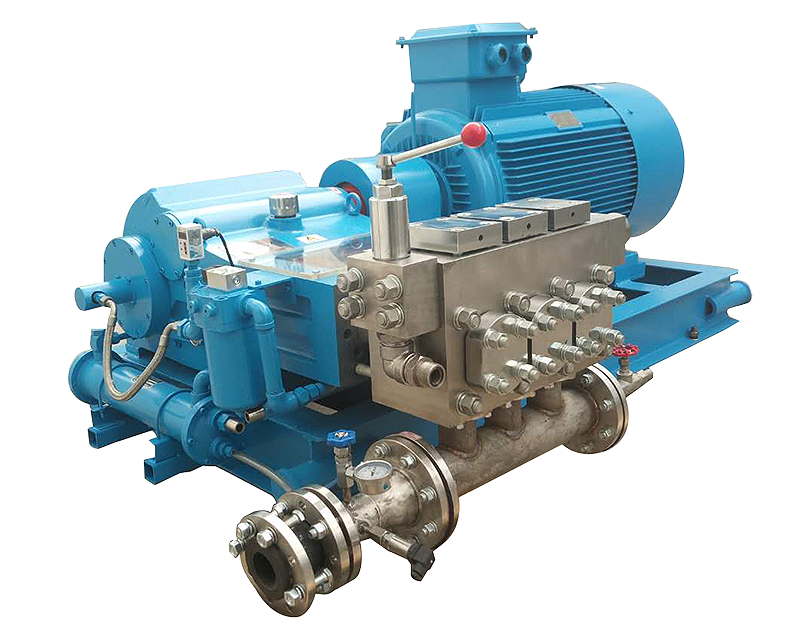

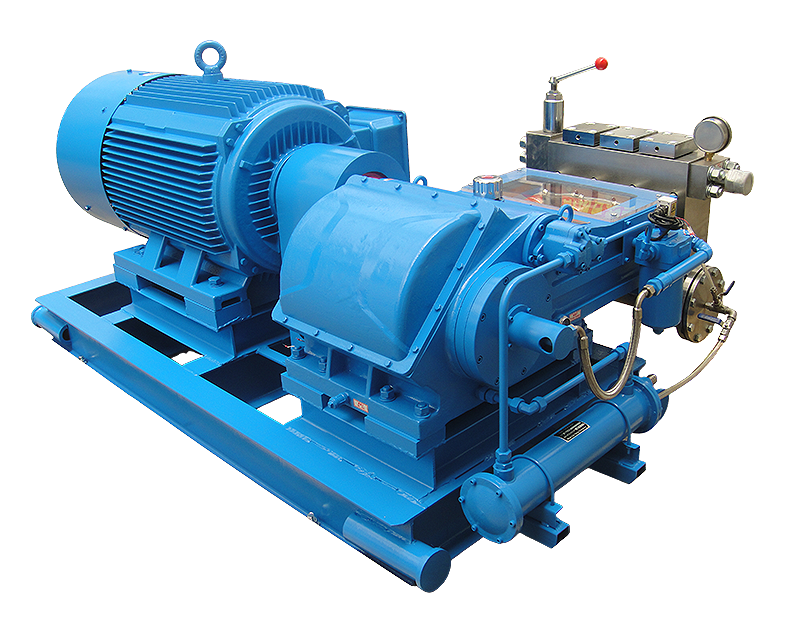

Plunger Pump

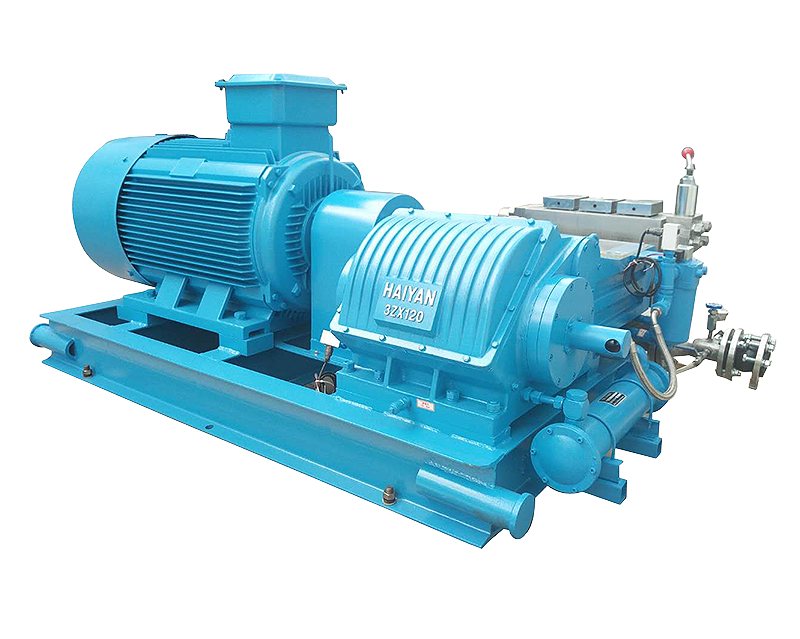

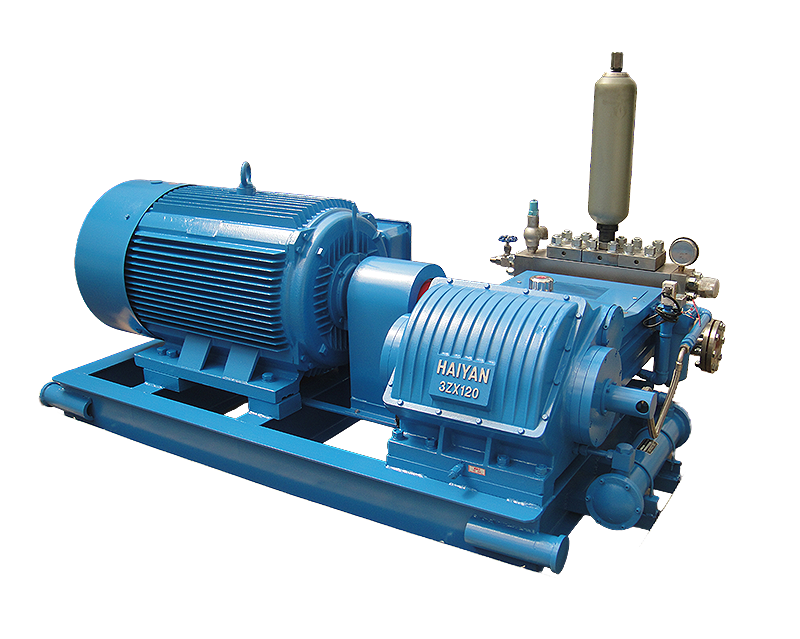

3ZX120
Stroke Length (mm) ：120
Crankcase Oil Capacity (L)：26.3
Pump Weight (KG)： 860
Recommended SPM for Continuous Duty： ≤318
Standard Gear Ratio：4.57
Optional Gear Ratio：4.04
Optional Gear Ratio：3.25
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 | 450 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 37.9 | 63.1 | 88.3 | 113.6 | 138.8 | 164.1 | 189.3 | 214.6 | 227.2 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||||
| 52 | 353 | 57.3 | 95.6 | 133.8 | 172.0 | 210.2 | 248.5 | 286.7 | 324.9 | 344.0 |
| 55 | 316 | 64.1 | 106.9 | 149.7 | 192.4 | 235.2 | 278.0 | 320.7 | 363.5 | 384.9 |
| 58 | 284 | 71.3 | 118.9 | 166.5 | 214.0 | 261.6 | 309.1 | 356.7 | 404.2 | 428.0 |
| 60 | 265 | 76.3 | 127.2 | 178.1 | 229.0 | 279.9 | 330.8 | 381.7 | 432.6 | 458.0 |
| 62 | 248 | 81.5 | 135.9 | 190.2 | 244.5 | 298.9 | 353.2 | 407.6 | 461.9 | 489.1 |
| 63 | 241 | 84.2 | 140.3 | 196.4 | 252.5 | 308.6 | 364.7 | 420.8 | 476.9 | 505.0 |
| 65 | 226 | 89.6 | 149.3 | 209.1 | 268.8 | 328.5 | 388.2 | 448.0 | 507.7 | 537.6 |
| 68 | 207 | 98.1 | 163.4 | 228.8 | 294.2 | 359.5 | 424.9 | 490.3 | 555.6 | 588.3 |
| 70 | 195 | 103.9 | 173.2 | 242.5 | 311.7 | 381.0 | 450.3 | 519.5 | 588.8 | 623.5 |
| 72 | 184 | 109.9 | 183.2 | 256.5 | 329.8 | 403.1 | 476.4 | 549.7 | 622.9 | 659.6 |
| 75 | 170 | 119.3 | 198.8 | 278.3 | 357.8 | 437.4 | 516.9 | 596.4 | 675.9 | 715.7 |
| 78 | 157 | 129.0 | 215.0 | 301.0 | 387.0 | 473.1 | 559.1 | 645.1 | 731.1 | 774.1 |
| 80 | 149 | 135.7 | 226.2 | 316.7 | 407.2 | 497.6 | 588.1 | 678.6 | 769.1 | |
| 82 | 142 | 142.6 | 237.6 | 332.7 | 427.8 | 522.8 | 617.9 | 712.9 | 808.0 | |
