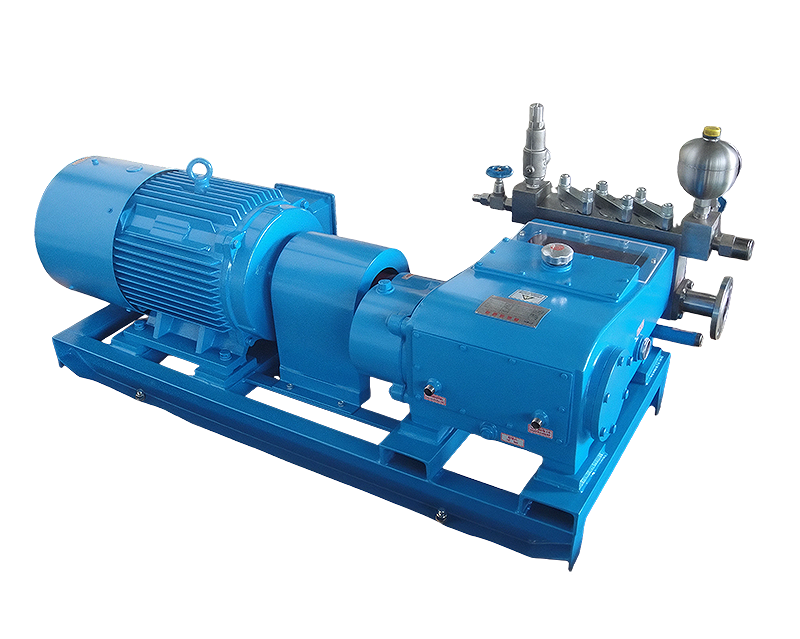

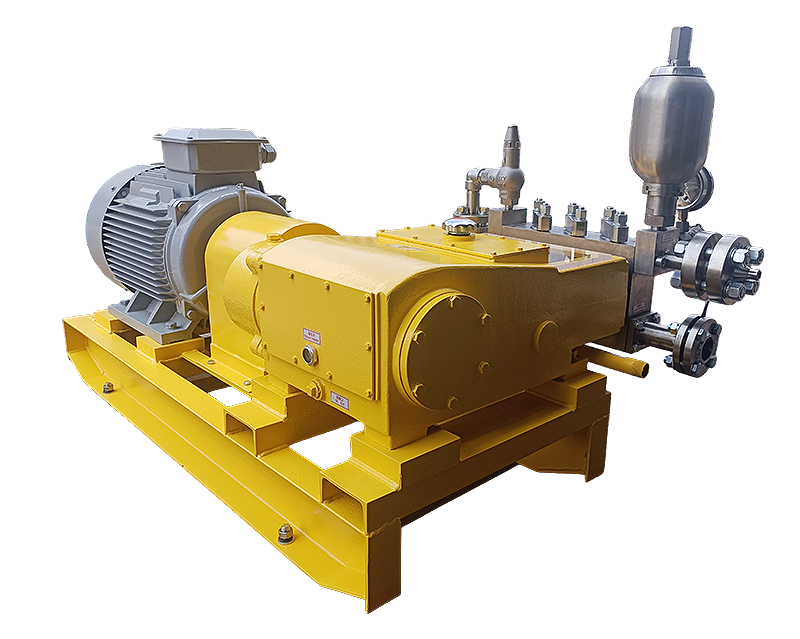

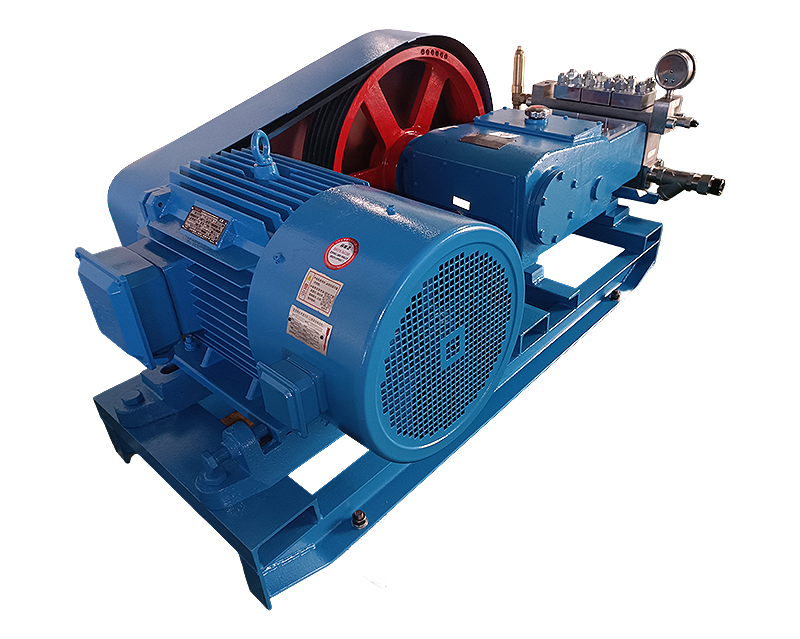

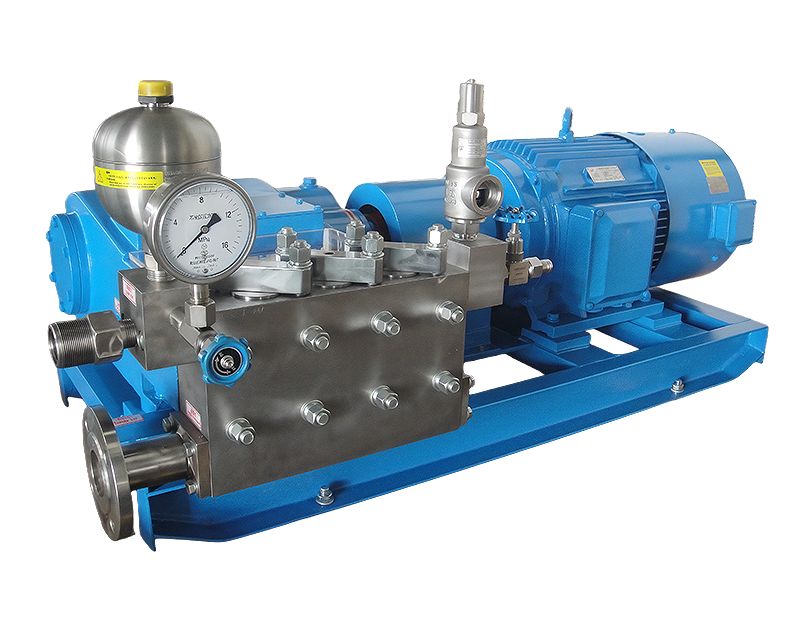

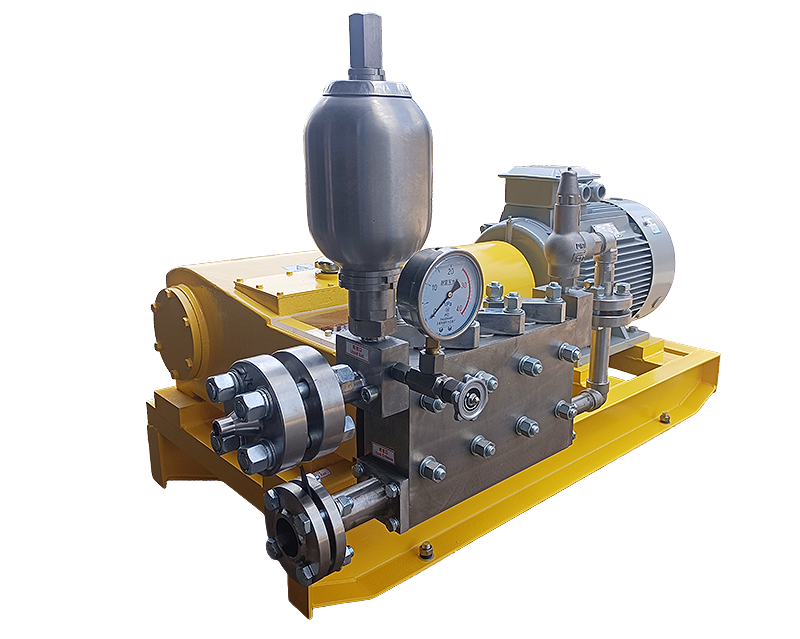

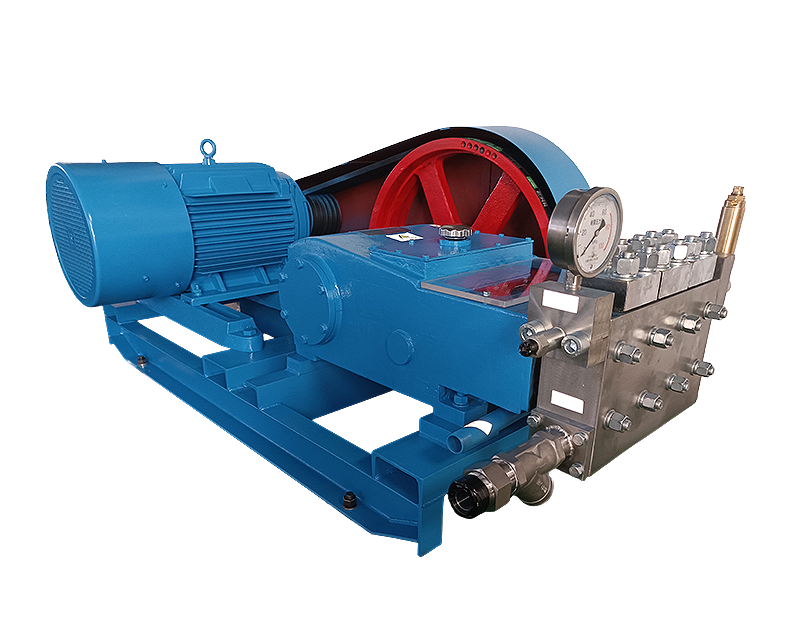

Plunger Pump

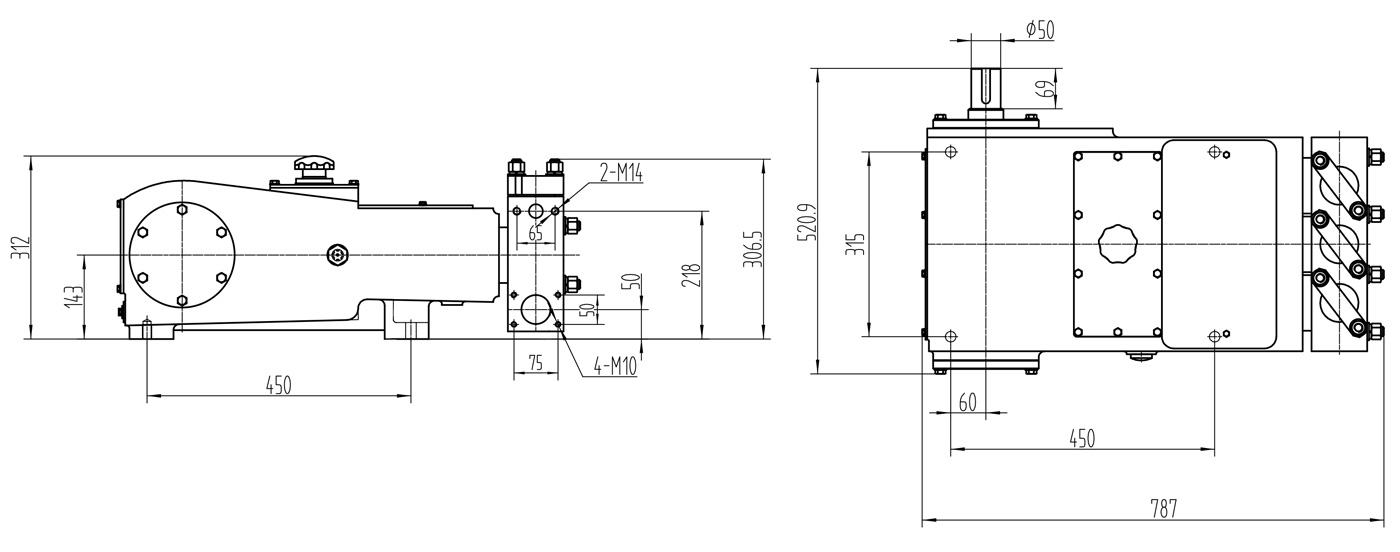

3DW60
Stroke Length (mm) ：60
Crankcase Oil Capacity (L)：8.9
Pump Weight (KG)： 260
Recommended SPM for Continuous Duty： ≤430
Standard Gear Ratio：2.88
| Strokes per Minute | 75 | 150 | 225 | 300 | 375 | 450 | 525 | 600 | 675 | 725 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 5.0 | 10.1 | 15.1 | 20.2 | 25.2 | 30.3 | 35.3 | 40.4 | 45.4 | 48.8 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | |||||||||
| 10 | 2547 | 1.1 | 2.1 | 3.2 | 4.2 | 5.3 | 6.4 | 7.4 | 8.5 | 9.5 | 10.2 |
| 12 | 1769 | 1.5 | 3.1 | 4.6 | 6.1 | 7.6 | 9.2 | 10.7 | 12.2 | 13.7 | 14.8 |
| 15 | 1132 | 2.4 | 4.8 | 7.2 | 9.5 | 11.9 | 14.3 | 16.7 | 19.1 | 21.5 | 23.1 |
| 16 | 995 | 2.7 | 5.4 | 8.1 | 10.9 | 13.6 | 16.3 | 19.0 | 21.7 | 24.4 | 26.2 |
| 18 | 786 | 3.4 | 6.9 | 10.3 | 13.7 | 17.2 | 20.6 | 24.0 | 27.5 | 30.9 | 33.2 |
| 20 | 637 | 4.2 | 8.5 | 12.7 | 17.0 | 21.2 | 25.4 | 29.7 | 33.9 | 38.2 | 41.0 |
| 23 | 481 | 5.6 | 11.2 | 16.8 | 22.4 | 28.0 | 33.7 | 39.3 | 44.9 | 50.5 | 54.2 |
| 25 | 407 | 6.6 | 13.3 | 19.9 | 26.5 | 33.1 | 39.8 | 46.4 | 53.0 | 59.6 | 64.1 |
| 28 | 325 | 8.3 | 16.6 | 24.9 | 33.3 | 41.6 | 49.9 | 58.2 | 66.5 | 74.8 | 80.4 |
| 30 | 283 | 9.5 | 19.1 | 28.6 | 38.2 | 47.7 | 57.3 | 66.8 | 76.3 | 85.7 | 92.2 |
| 32 | 249 | 10.9 | 21.7 | 32.6 | 43.4 | 54.3 | 65.1 | 76.0 | 86.9 | 97.7 | 105.0 |
| 34 | 220 | 12.3 | 24.5 | 36.8 | 49.0 | 61.3 | 73.5 | 85.8 | 98.1 | 110.3 | 118.5 |
| 36 | 197 | 13.7 | 27.5 | 41.2 | 55.0 | 68.7 | 82.4 | 96.2 | 109.9 | 123.7 | 132.8 |
| 38 | 176 | 15.3 | 30.6 | 45.9 | 61.2 | 76.6 | 91.9 | 107.2 | 122.5 | 137.8 | 148.0 |
| 42 | 144 | 18.7 | 37.4 | 56.1 | 74.8 | 93.5 | 112.2 | 130.9 | 149.6 | 168.3 | 180.8 |
| 46 | 120 | 22.4 | 44.9 | 67.3 | 89.7 | 112.2 | 134.6 | 157.1 | 179.5 | 201.9 | 216.9 |
| 48 | 111 | 24.4 | 48.9 | 73.3 | 97.7 | 122.1 | 146.6 | 171.0 | 195.4 | 219.9 | 236.1 |
| 50 | 102 | 26.5 | 53.0 | 79.5 | 106.0 | 132.5 | 159.0 | 185.6 | 212.1 | 238.6 | 256.2 |
| 52 | 94 | 28.7 | 57.3 | 86.0 | 114.7 | 143.4 | 172.0 | 200.7 | 229.4 | 258.0 | 277.1 |
| 55 | 84 | 32.1 | 64.1 | 96.2 | 128.3 | 160.4 | 192.4 | 224.5 | 256.6 | 288.7 | 310.0 |
| 58 | 76 | 35.7 | 71.3 | 107.0 | 142.7 | 178.3 | 214.0 | 249.7 | 285.3 | 321.0 | 344.8 |
| 60 | 71 | 38.2 | 76.3 | 114.5 | 152.7 | 190.9 | 229.0 | 267.2 | 305.4 | 343.5 | 369.0 |
| 62 | 66 | 40.8 | 81.5 | 122.3 | 163.0 | 203.8 | 244.5 | 285.3 | 326.1 | 366.8 | 394.0 |
| 65 | 60 | 44.8 | 89.6 | 134.4 | 179.2 | 224.0 | 268.8 | 313.6 | 358.4 | 403.2 | 433.0 |
| 68 | 55 | 49.0 | 98.1 | 147.1 | 196.1 | 245.1 | 294.2 | 343.2 | 392.2 | 441.3 | |
| 70 | 52 | 52.0 | 103.9 | 155.9 | 207.8 | 259.8 | 311.7 | 363.7 | 415.6 | ||
| 72 | 49 | 55.0 | 109.9 | 164.9 | 219.9 | 274.8 | 329.8 | 384.8 | 439.7 | ||
