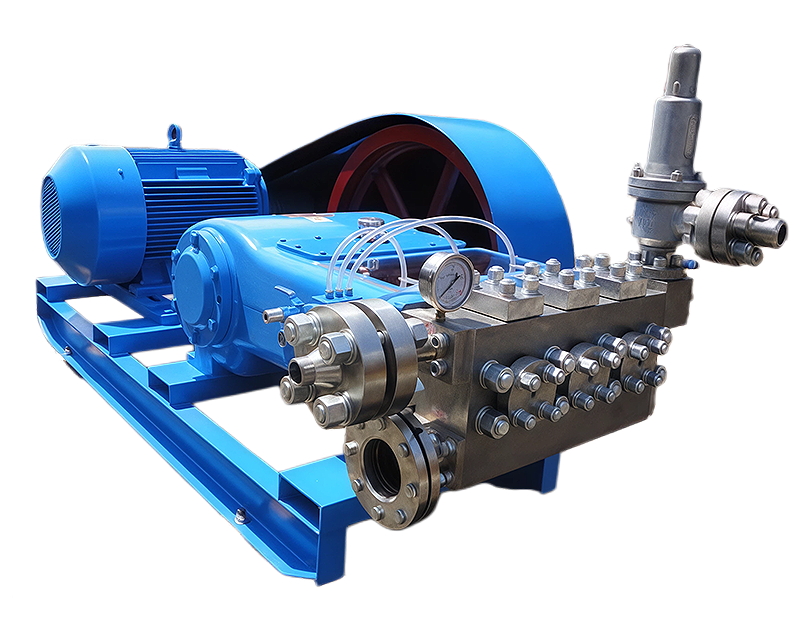

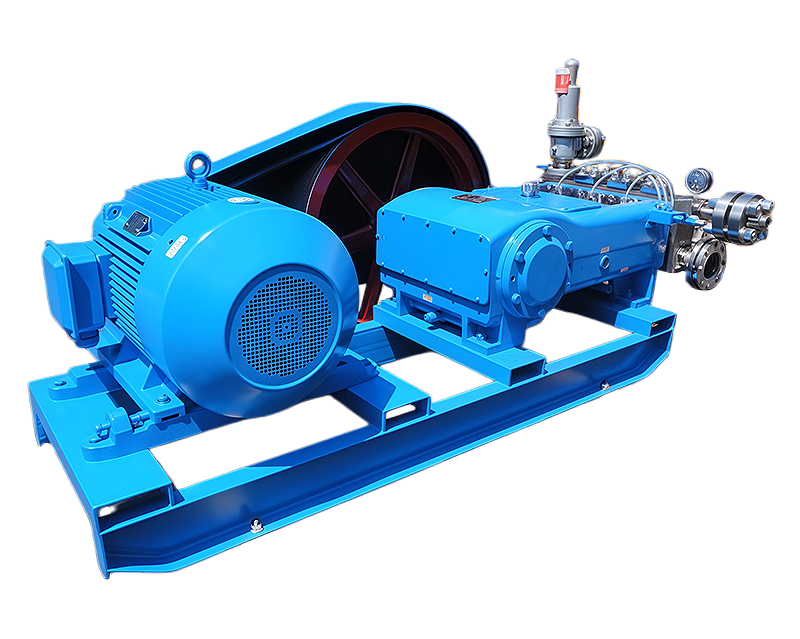

Plunger Pump

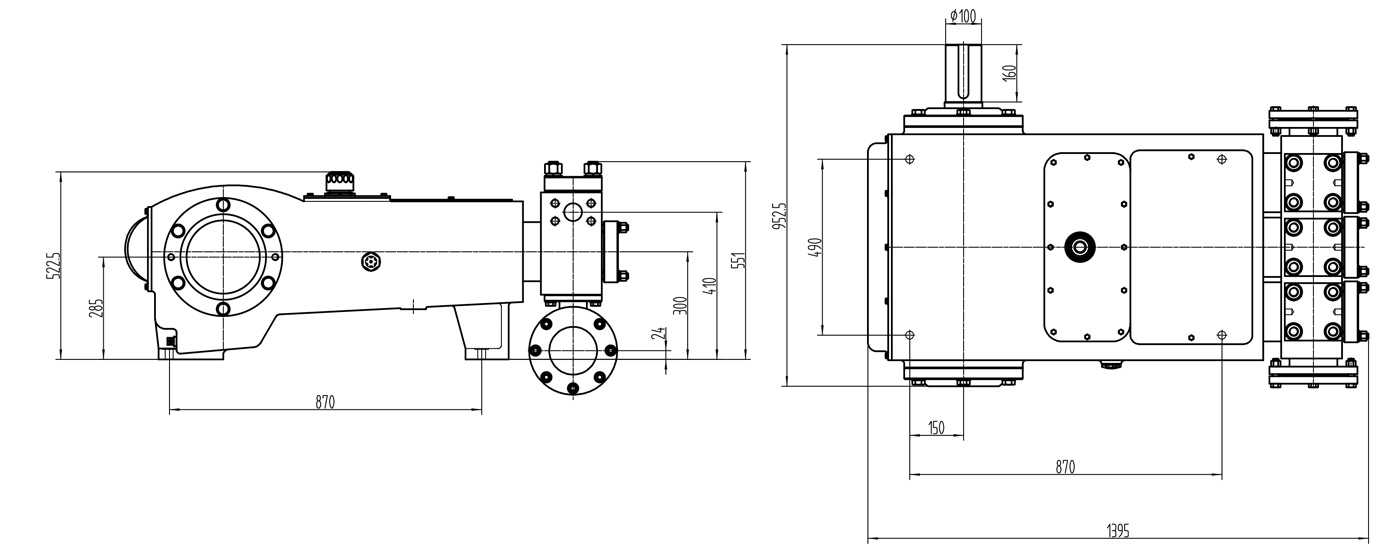

3DP120.100
Stroke Length (mm) ：100
Crankcase Oil Capacity (L)：47.4
Pump Weight (KG)： 1210
Recommended SPM for Continuous Duty： ≤350
| Strokes per Minute | 75 | 125 | 175 | 225 | 275 | 325 | 371 | |
|---|---|---|---|---|---|---|---|---|
| Input Power (kw) | 29.0 | 48.4 | 67.7 | 87.1 | 106.4 | 125.8 | 143.6 | |
| Plunger Size(mm) | Rated Pressure(bar) | Rated Capacity(L/min) | ||||||
| 38 | 494 | 25.5 | 42.5 | 59.5 | 76.6 | 93.6 | 110.6 | 126.2 |
| 44 | 368 | 34.2 | 57.0 | 79.8 | 102.6 | 125.4 | 148.3 | 169.2 |
| 50 | 285 | 44.2 | 73.6 | 103.1 | 132.5 | 162.0 | 191.4 | 218.5 |
| 56 | 227 | 55.4 | 92.4 | 129.3 | 166.3 | 203.2 | 240.1 | 274.1 |
| 62 | 186 | 67.9 | 113.2 | 158.5 | 203.8 | 249.1 | 294.4 | 336.0 |
| 68 | 154 | 81.7 | 136.2 | 190.7 | 245.1 | 299.6 | 354.1 | 404.2 |
| 74 | 130 | 96.8 | 161.3 | 225.8 | 290.3 | 354.8 | 419.3 | 478.7 |
| 80 | 111 | 113.1 | 188.5 | 263.9 | 339.3 | 414.7 | 490.1 | 559.5 |
| 86 | 96 | 130.7 | 217.8 | 305.0 | 392.1 | 479.2 | 566.4 | 646.5 |
| 92 | 84 | 149.6 | 249.3 | 349.0 | 448.7 | 548.4 | 648.1 | 739.9 |
| 98 | 74 | 169.7 | 282.9 | 396.0 | 509.2 | 622.3 | 735.4 | 839.5 |
| 104 | 66 | 191.1 | 318.6 | 446.0 | 573.4 | 700.8 | 828.3 | |
| 110 | 59 | 213.8 | 356.4 | 498.9 | 641.5 | 784.0 | ||
